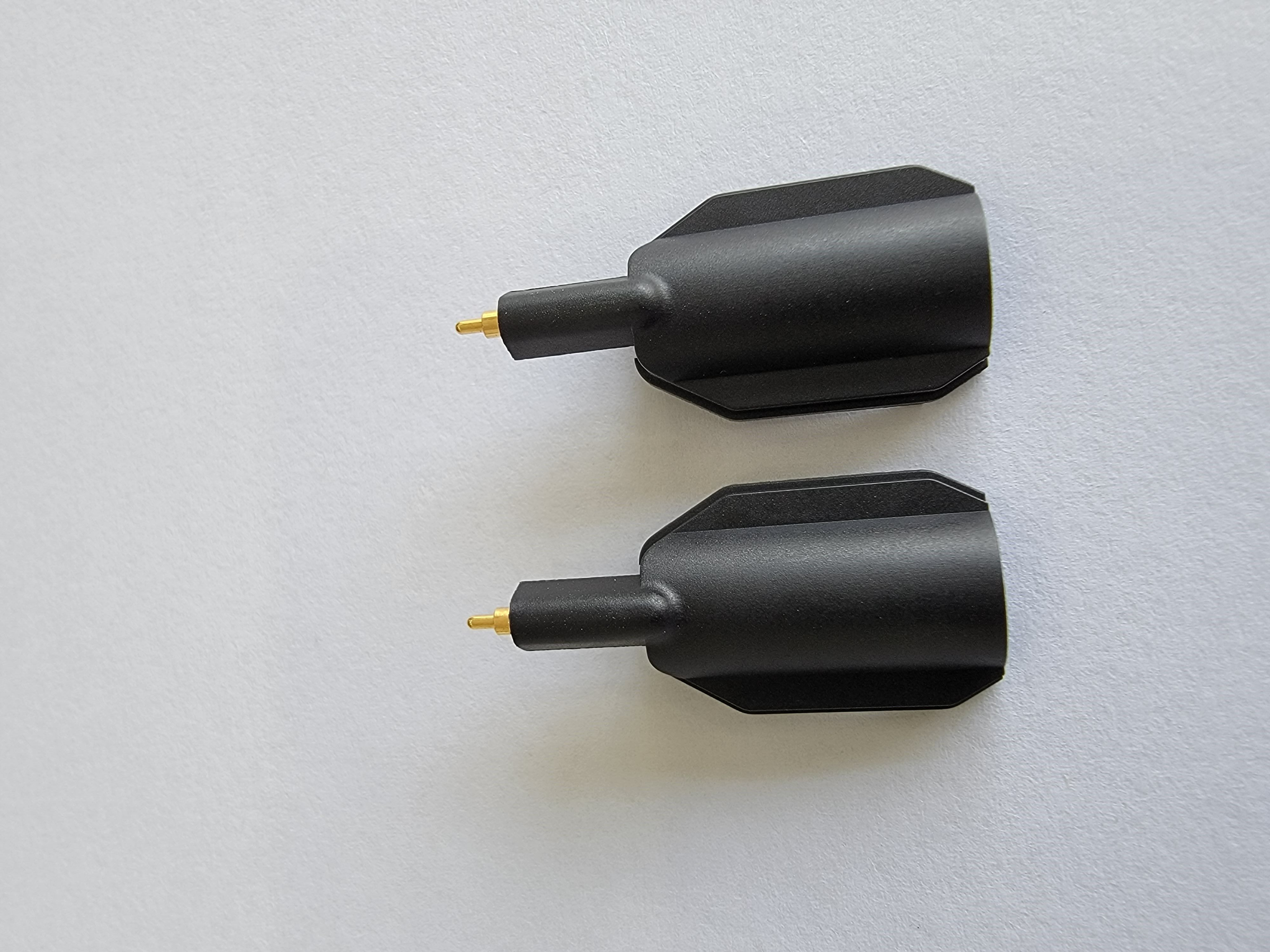

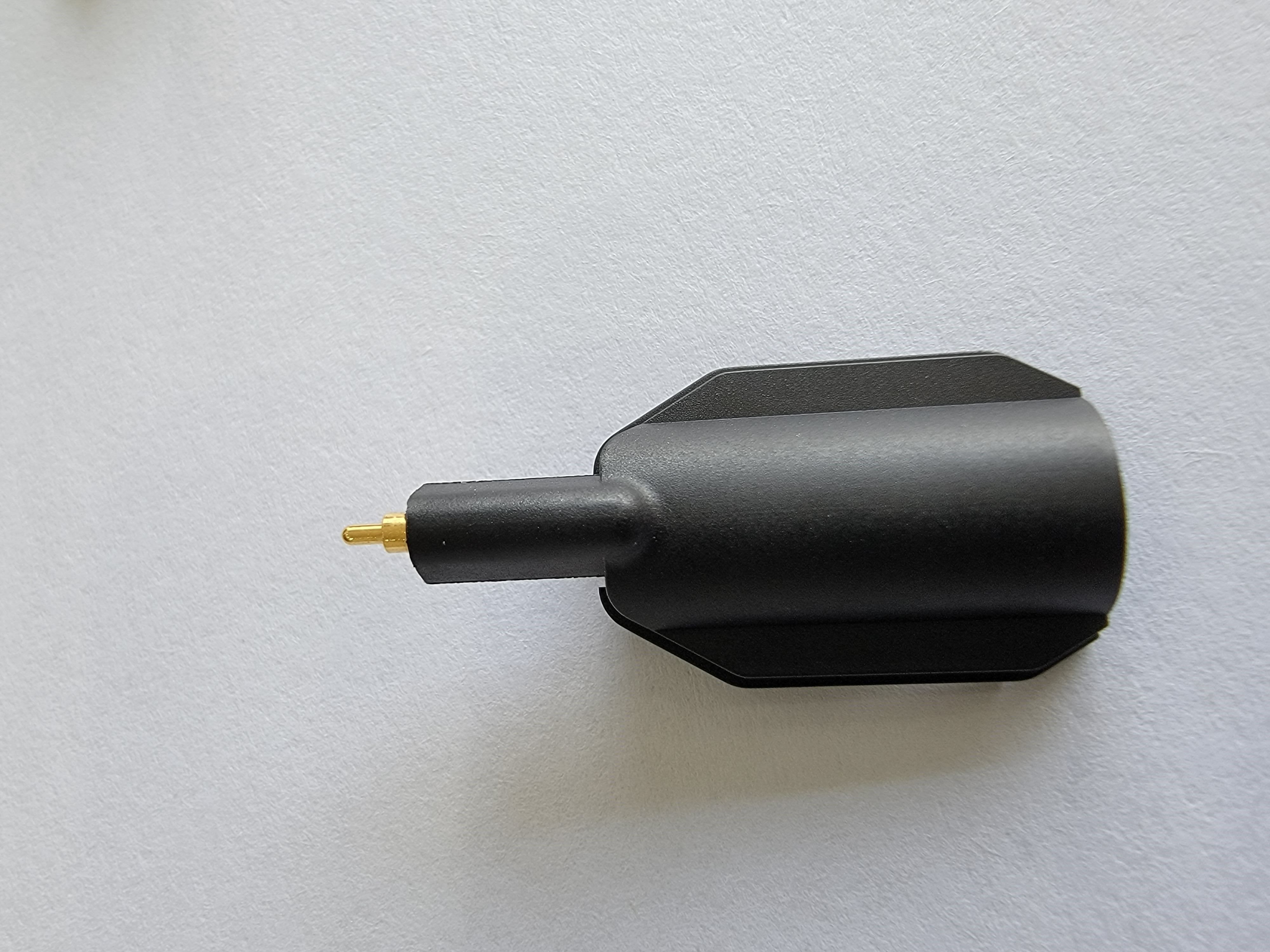

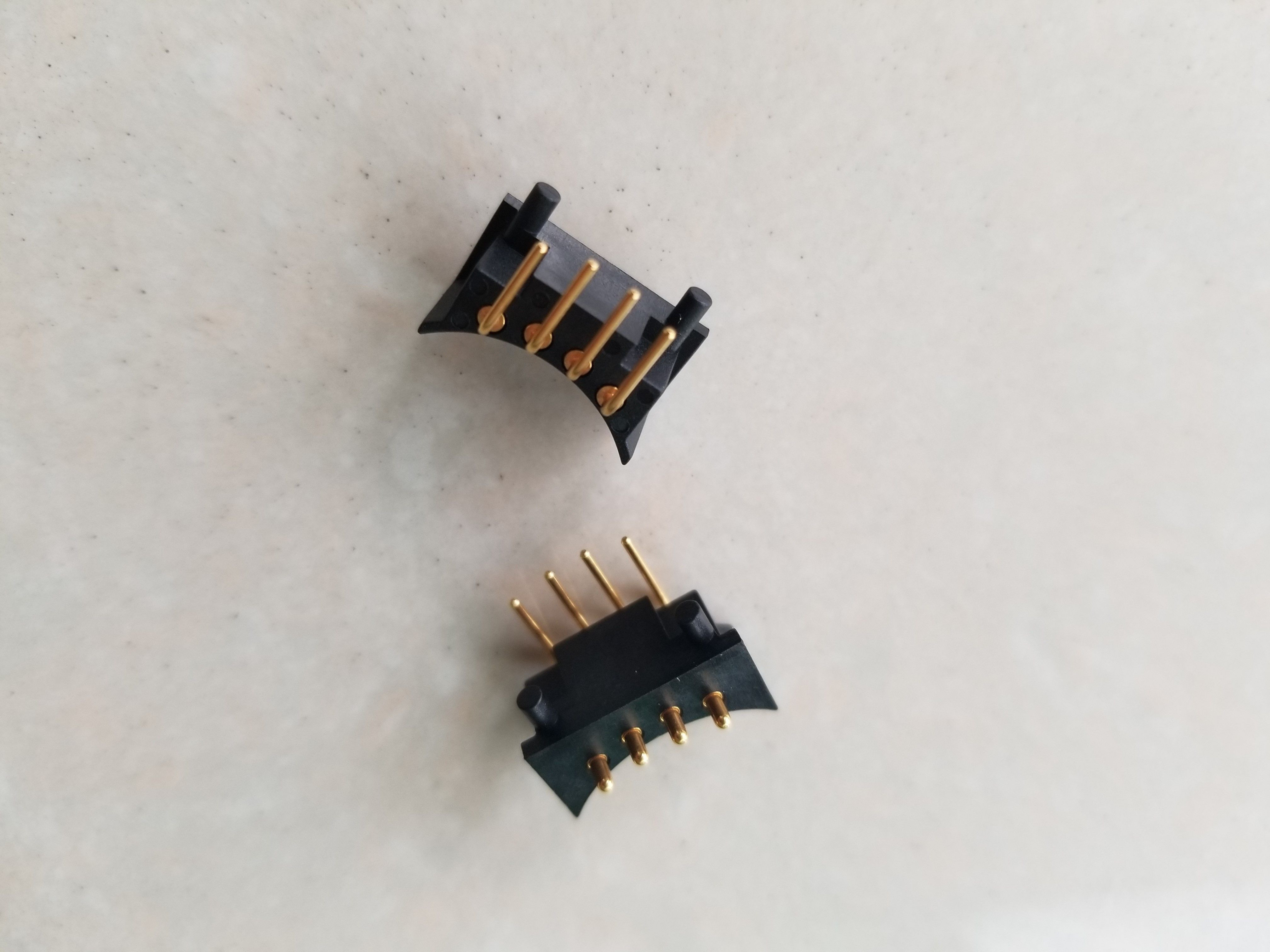

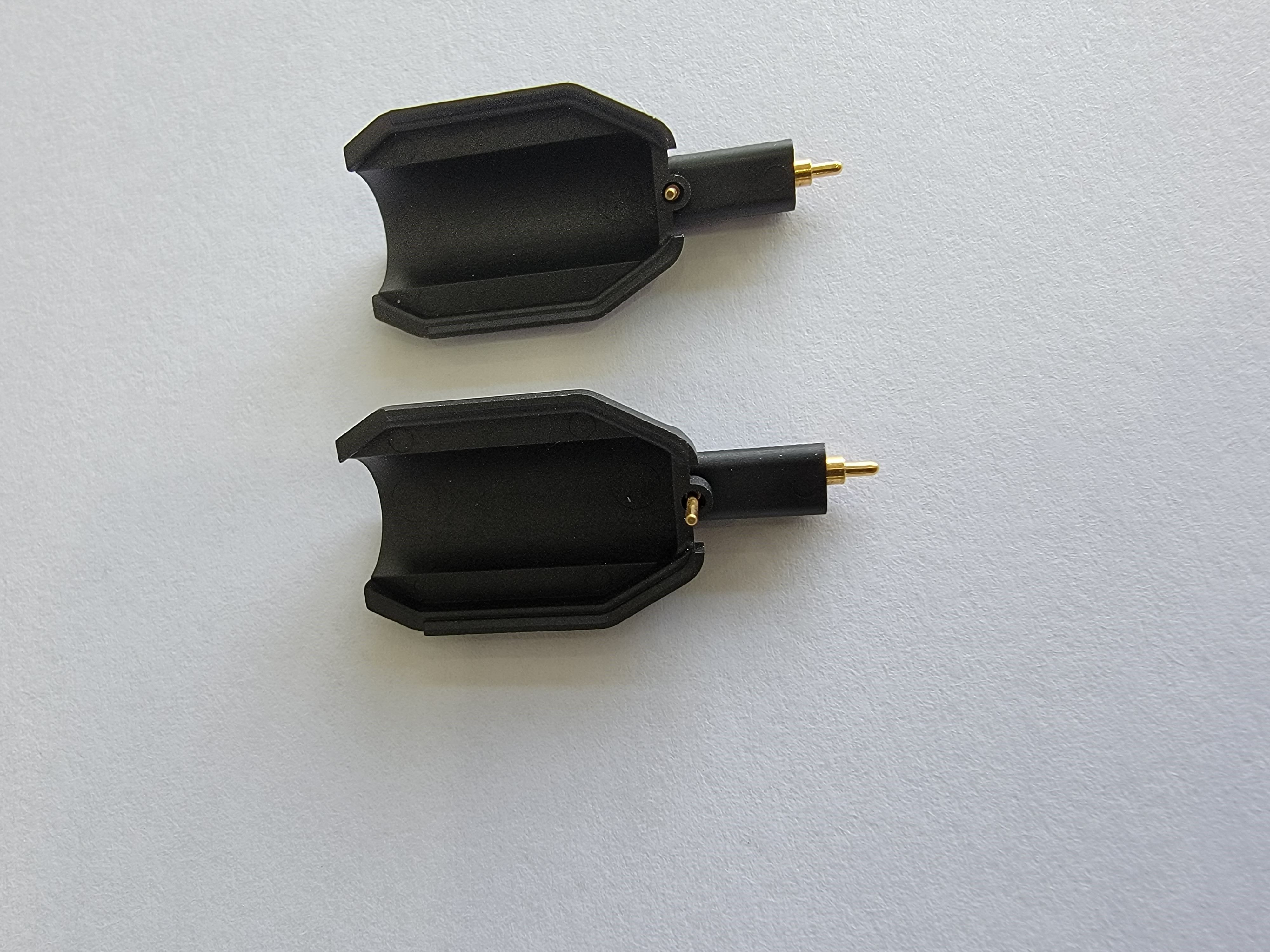

Test pin is a formed by plunger and tube and a spring three basic components through the precision instruments and riveting pressure after the spring probe,also known as the pogo pin connector. These Pogo Pin is generally used in mobilephones, communications, automotive, medical, aerospace and other electronic products in the precise connection.
Specifications:
Materials:
01. Pluger Contack pision copper alloy plated 1” gold over 30u” nickel
02. Spring:Beryillium copper-plated 1u” gold,
03. Insulator:High temperature thermoplastic,rated UL94 V-0. PA46
04. Barrel:Brass gold plating C3604
Mechanical:
01. Spring force@initial height:25grams.
02. Spring force@mid stroke(0.4):65grams
03. Durability:Up to 1000,000 cycles
04. Coplanarity:0.13(Single Row up to 10pins,Double Row up to 20pins) For higher counts,contact Technical Support.
Electrical:
01. Voltage rating:100Vrms/150Vdc
02. Current rating:2A(continous),3A(peak)per contact,
03. Contact resistance:20 Ohm max
04. Insulation resistance:10000 M ohm min
05. Dielectric strength:700 vrms min.
06. Capacitance:1pf MAX
Model No:YCM1-XXX2---2.54 PITCH
Application:PCB board
Gender:Male
Packing: tray, plastic bag, tape & reel optional
Certificate:UL.CE Rohs REACH
