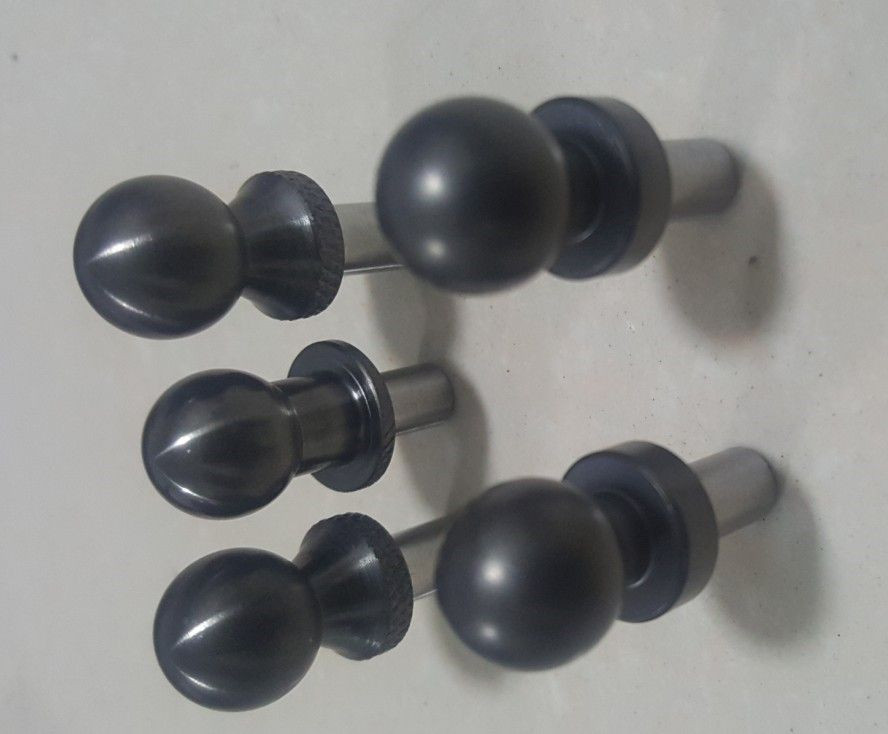

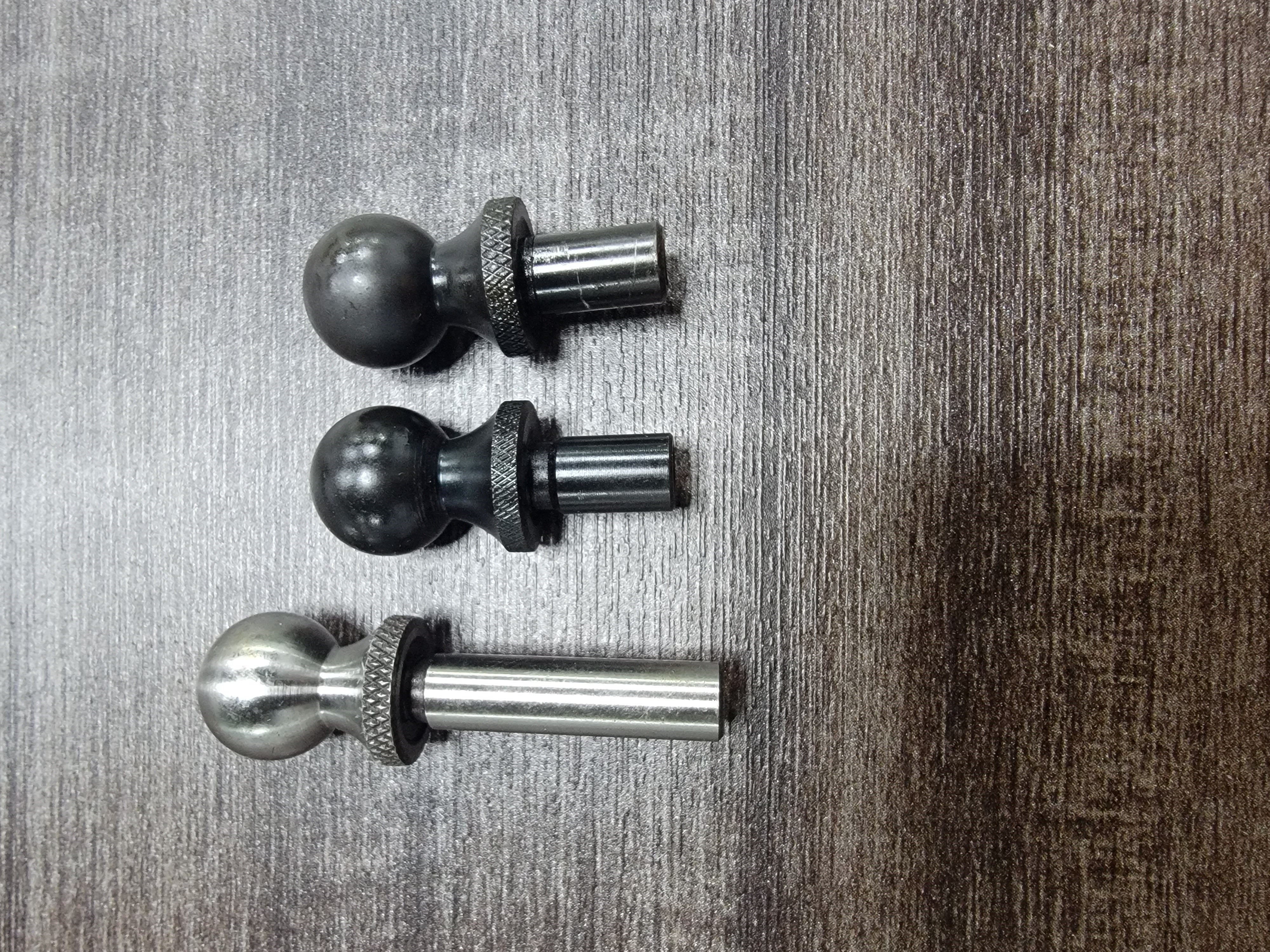

Shoulder tooling balls are precision tooling balls used as a reference point for critical inspection,layout,and maching operations.shoulder type construction balls feature a precision-height reference shoulder designed to located the ball in three dimensions,the adjustable version of these tooling ball has no shoulder.so it can be set to any desired height before being locked with a set screws.
Specifications:
1. Shouder type./concentricity between ball and shank is 0.005mm TIR
2. Process: Machined and Grinding
3. Raw material: 1144 Steel/Stainless steel.
4.Heat treated hardened HRC54-58
Applications:
Workholding Solutions./Locating Components / Construction balls
Descriptions:
Material: 1144 steel, stainless steel or 440C optional.

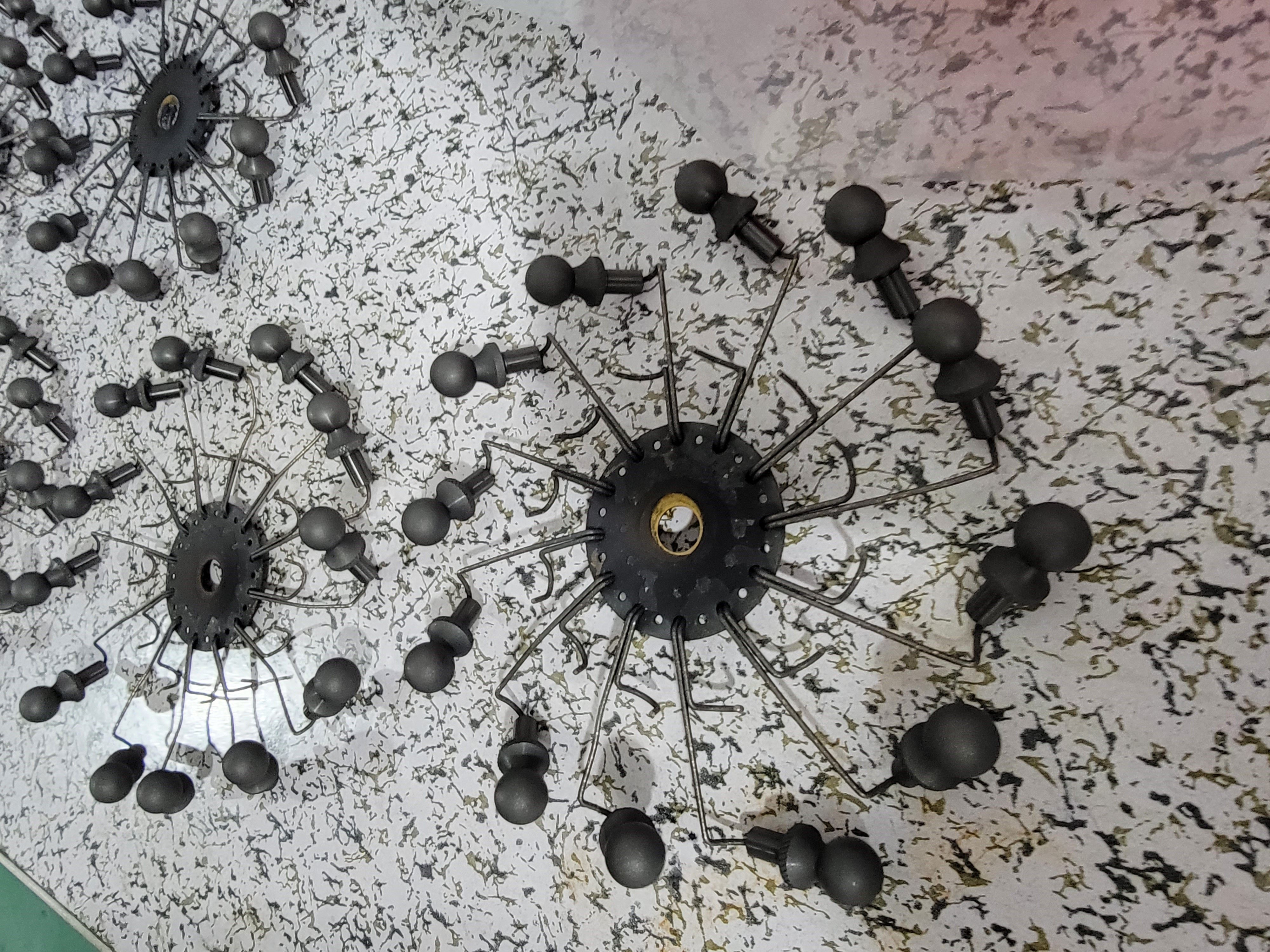

Surface treatments: polishing, powder coated, PVD plating, chromate and more
Tolerance: can reach up to ±0.005mm
Quality control: 100% inspected
Specification: strictly per drawing and samples
Sample lead time: 15days
Advantages:
1. Professional research and design team, necessary equipment: automatic CNC machine, 3D machine, automatic press.
2. Strict quality control in each process and finished product quality control
3. Short delivery lead time: 15-30 days
4. OEM or ODM (optional)
Model No:CL-1-SCB(1/2inch)
Application:Workholding solutions./Availabe in FixturePro.
Packing: Tray, plastic bag, plastic box. Cartons.
Certificate:UL.CE Rohs REACH
