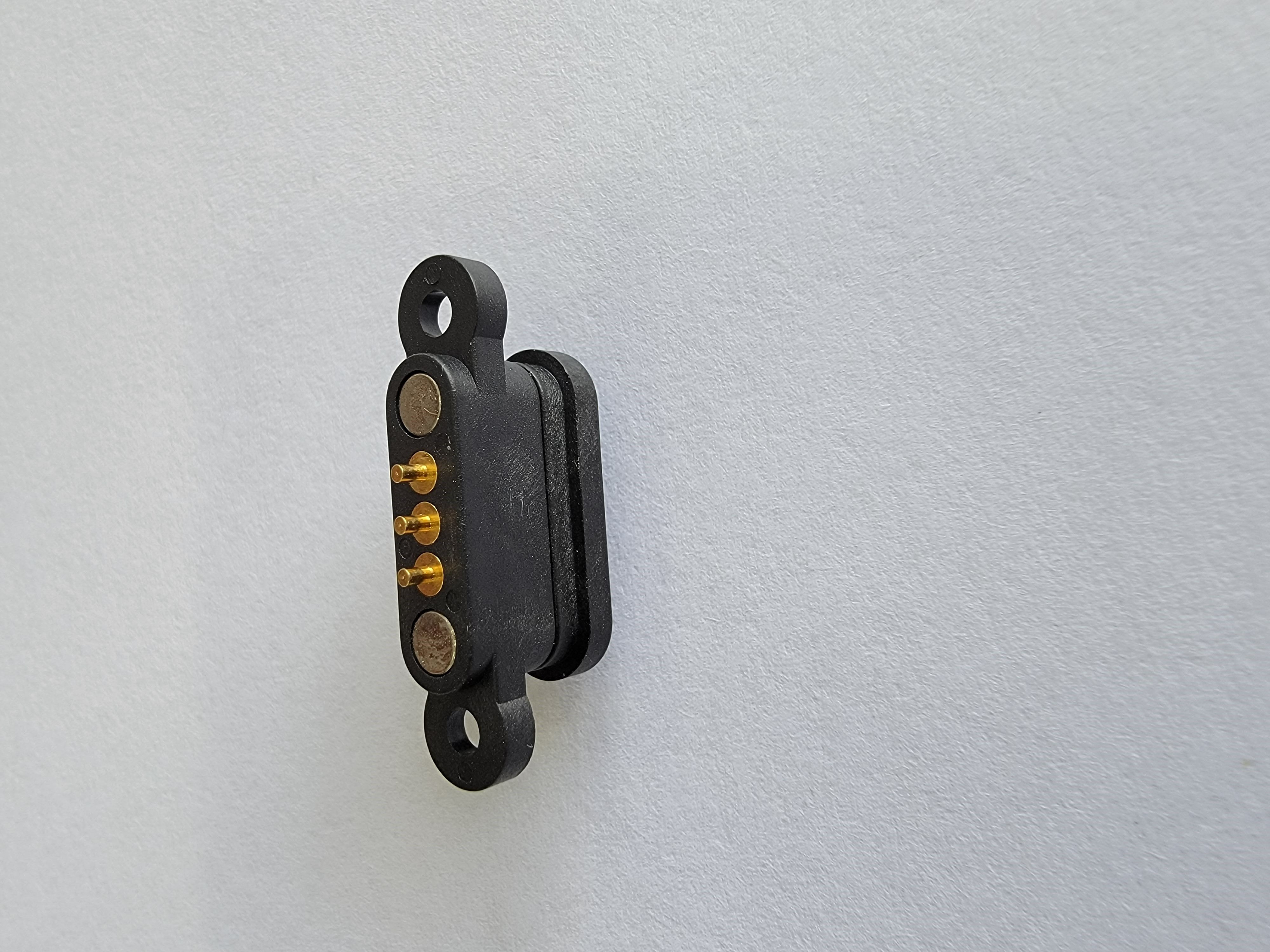

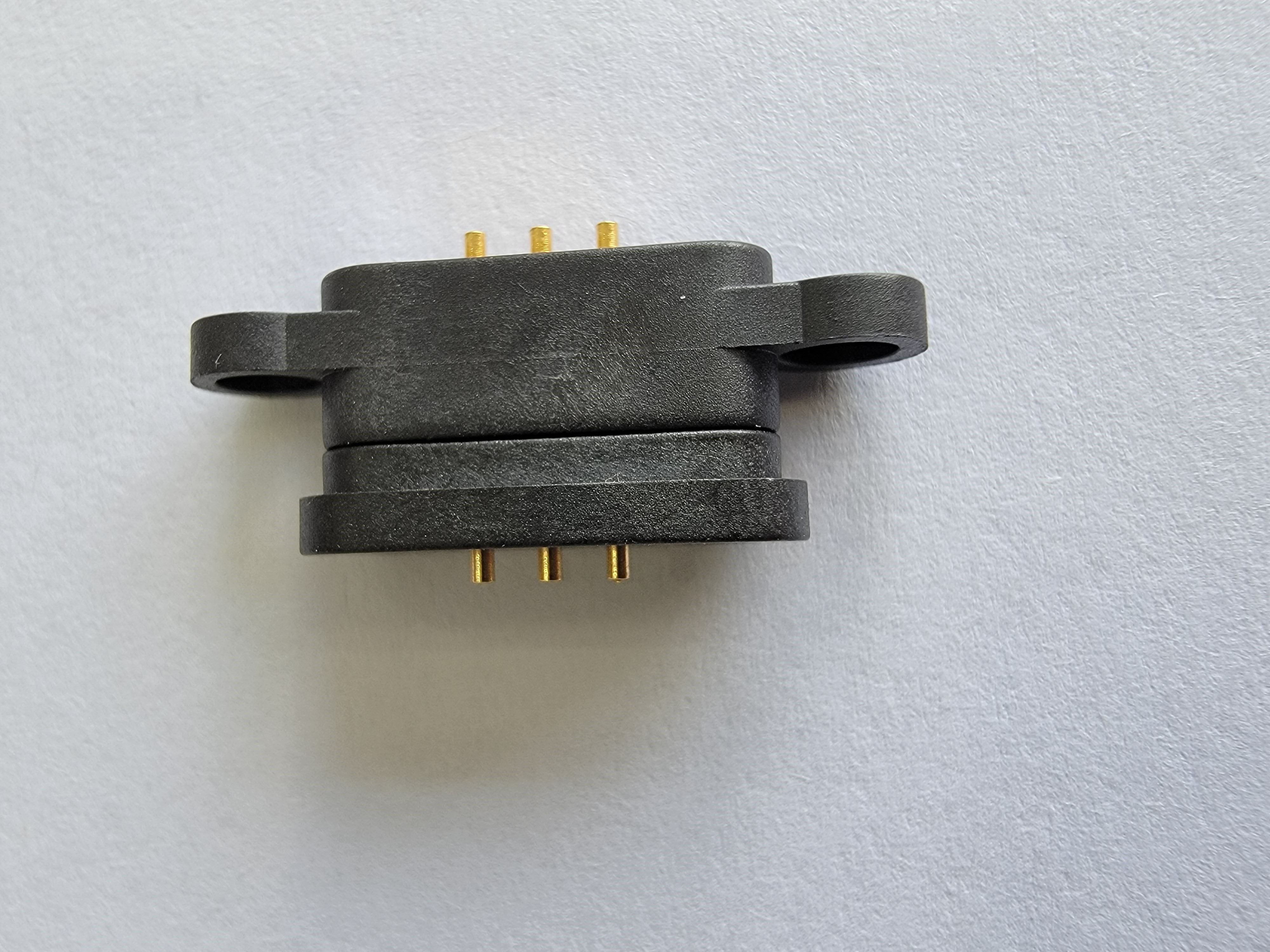

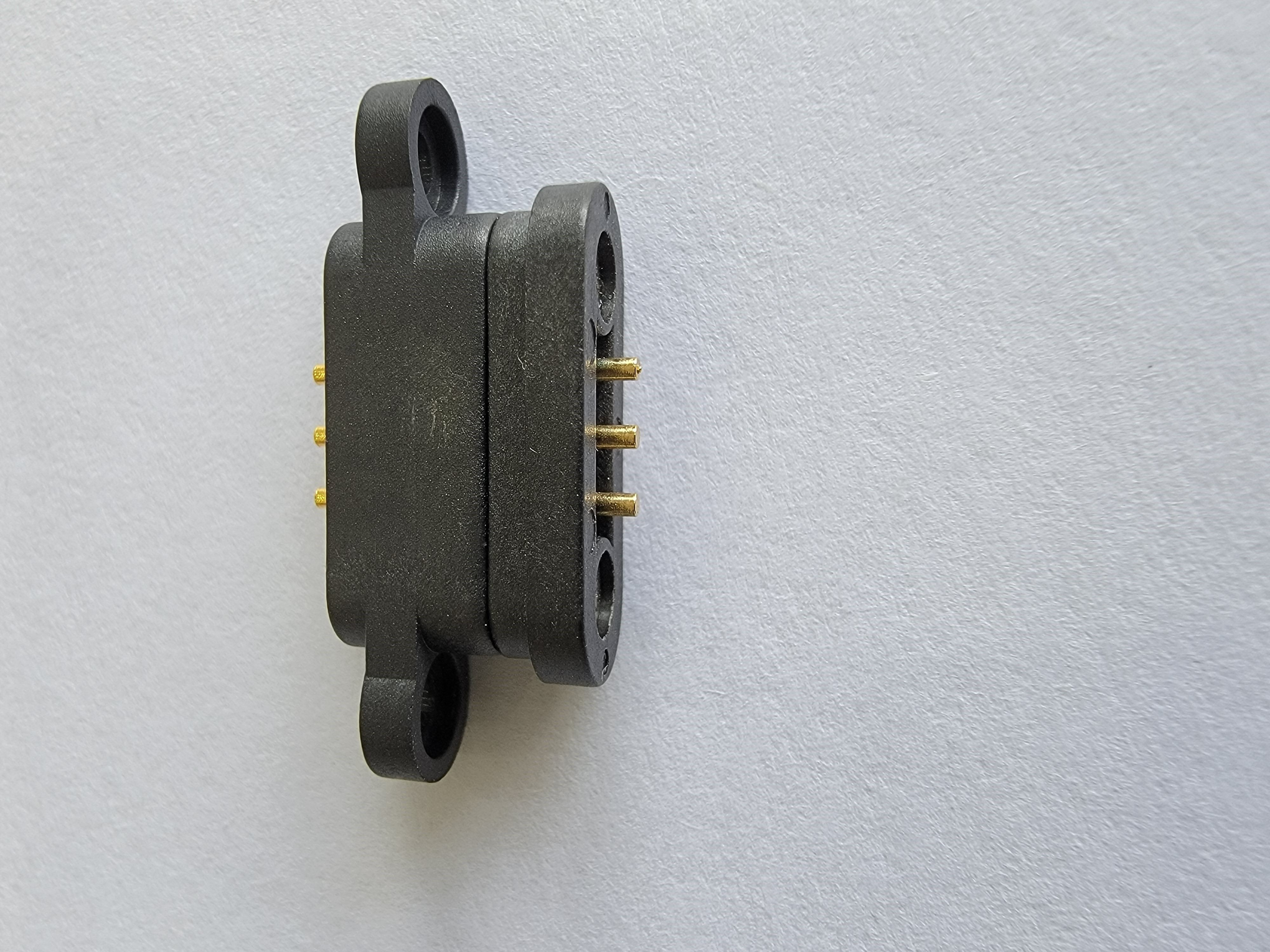

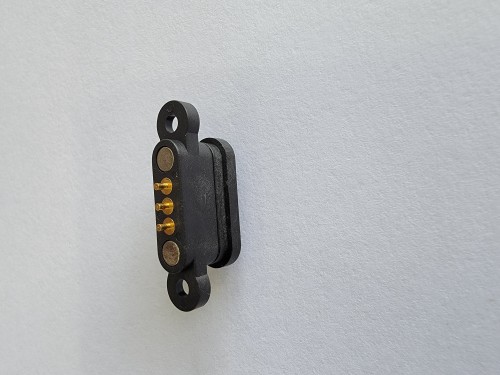

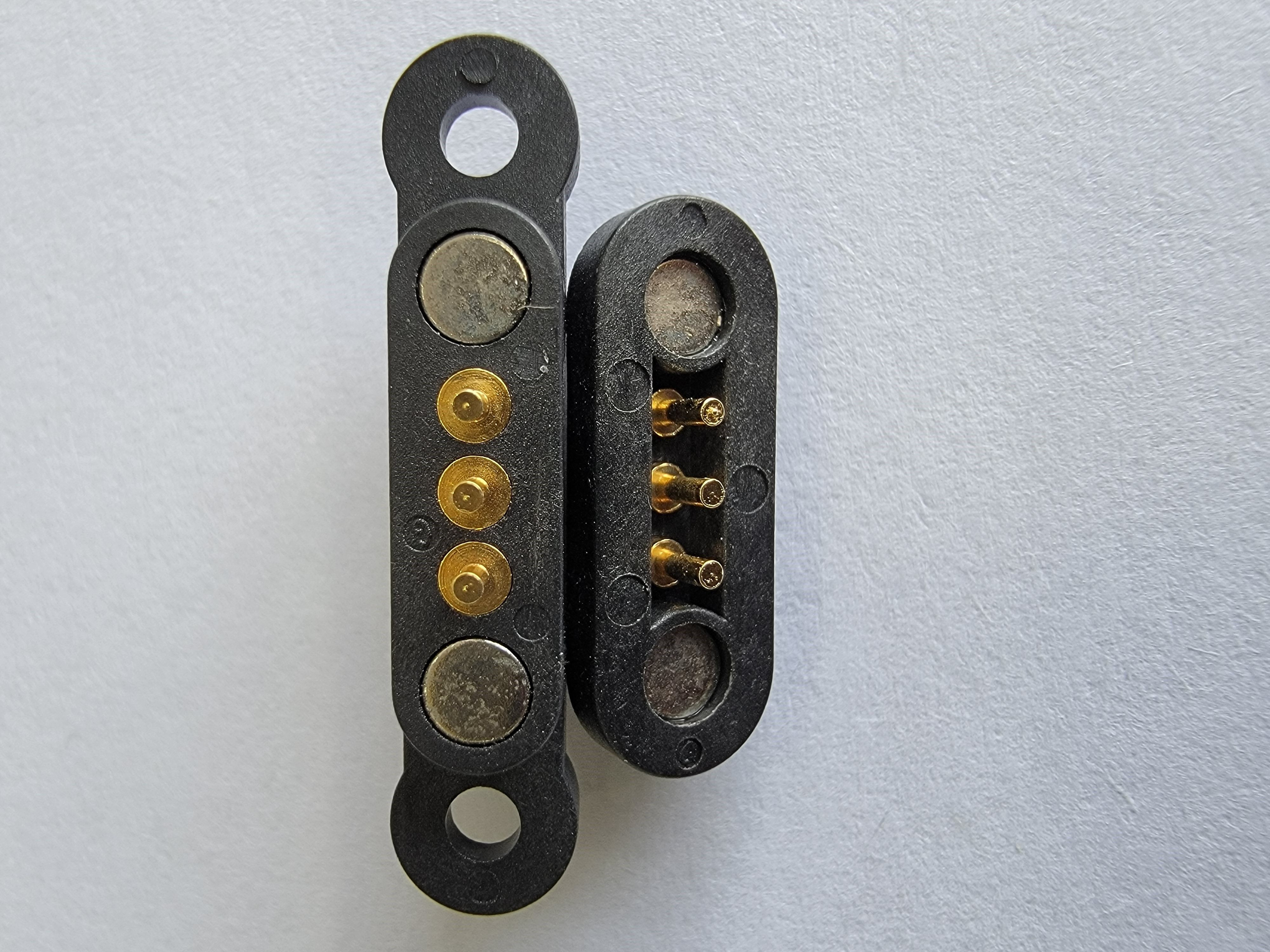

Magnetic Pogo Pin Is A Formed By Plastic Box And Brass Pin A Basic Components

Magnetic Pogo pin is a formed by plastic box and brass pin a  basic components through the precision instruments and riveting pressure after the spring probe.These Board to Board pogo pin connector is generally used  in mobilephones, communications, automotive, medical, aerospace and other electronic products in the precise connection.

Specifications:

Positions: 2-24 P
lastic height: 2.0 mm
Rated current: 1.0Amp
Dual row and locating peg or capOperating
temperatures:-55 to 125°C
Maximum contact resistance: 20mΩMinimum
insulation resistance: 1,000MΩ
Withstanding voltage: 500V AC
Insulator material: polyester (UL94V-0)
Standards: PA9T/LCP+30%GF
Contact material: Phosphor Bronze.
Contact plating: Au or Sn over 50μ Ni

Model No:YCM1-XXX1---2.54 PITCH

Application:PCB board

Gender:Male/Femlale

 Packing:  tray, plastic bag, tape & reel optional

 Certificate:UL.CE Rohs REACH
