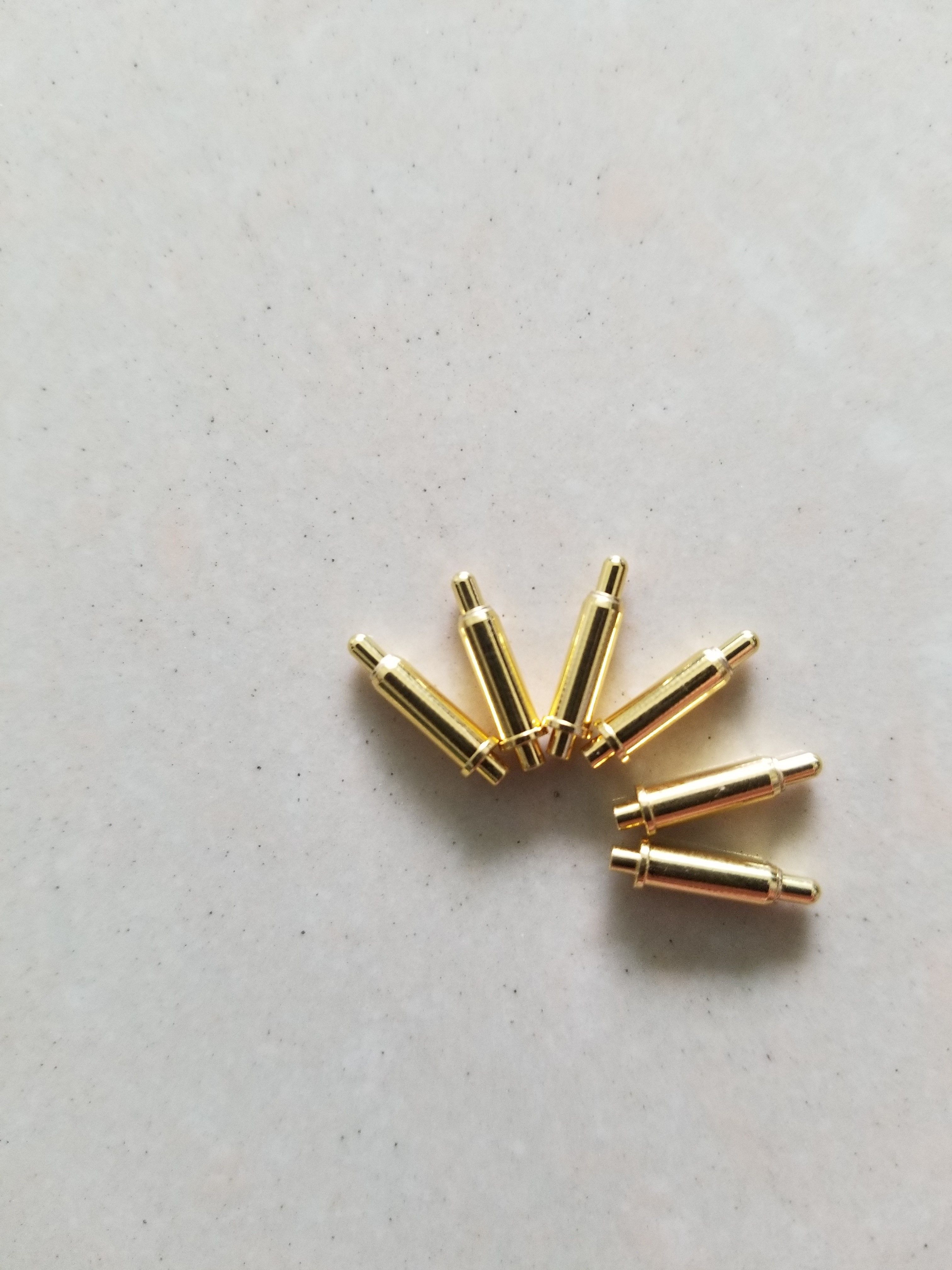

Gold test probes is a formed by plunger and tube and a spring three basic components through the precision instruments and riveting pressure after the spring probe,also known as the pogo pin connector. These Pogo Pin is generally used in mobilephones, communications, automotive, medical, aerospace and other electronic products in the precise connection.
Key Specifications/ Special Features:
Characteristics:
A. Electrical
1) Operating voltage: 12V.
2) Operating current: 3.5A.
3) Contact resistance: 30mohm Max.
at working height(Quiescence).
B. Mechanical
1) Total stroke: 1.10mm.
2) Working position: 4.5mm.
3) Spring Force:75±25gf at working height
4) Mechanical life: 10,000 cycle min.
5) Dont exceed the Max. allowed compression
C. Material/Finish
1) Plunger: Brass, Plating Min. 0.25um Au over Min. 1.4um Ni.
2) Barrel: Brass, Min. Plating 0.1um Au over Min. 1.4um Ni.
3) Spring: Stainless steel wire.
4) Housing:PA 4.6 + 30% GLASS FIBER; BLACK(UL94V-0)
D. Environmental
1) Storage and operating temoperature range:
-40°C~+85°C
2) Humidity range: 10% RH to 90% RH
3) Salt spray: 48H
Model No:YCM1-XXX2---2.54 PITCH
Application:PCB board
Gender:Male
Packing: tray, plastic bag, tape & reel optional
Certificate:UL.CE Rohs REACH
